Name: VW Transporter T5 1.9 TDI PD 240hp Hybrid Turbo Kit 1752 BRR BRS AXB | UKTP
SKU: UKTP-T5-1752-KIT
Price: 945.00 GBP
Availability: InStock

Description

VW Transporter Turbo kit for 240hp Kit

Kit consists of the following

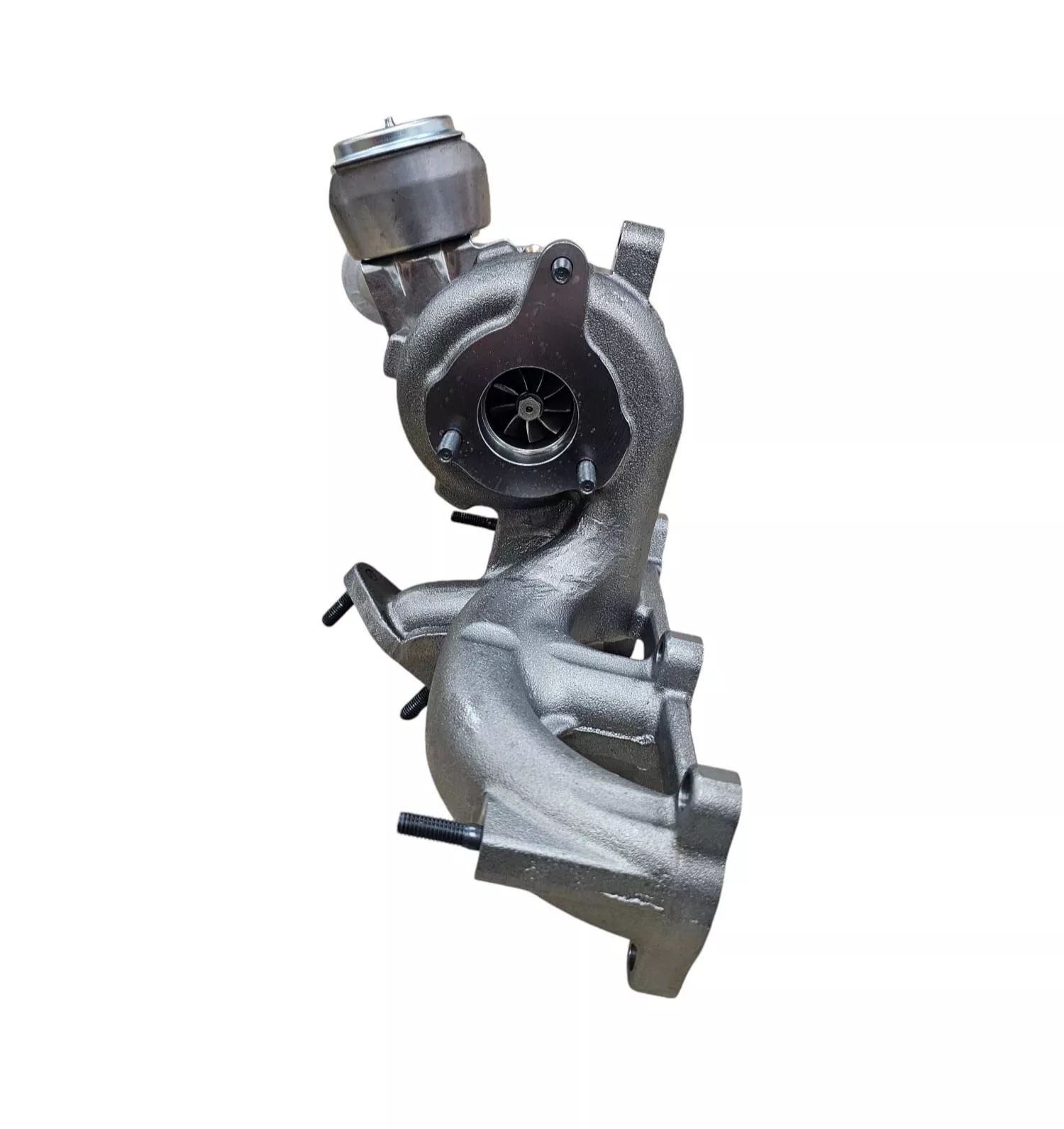

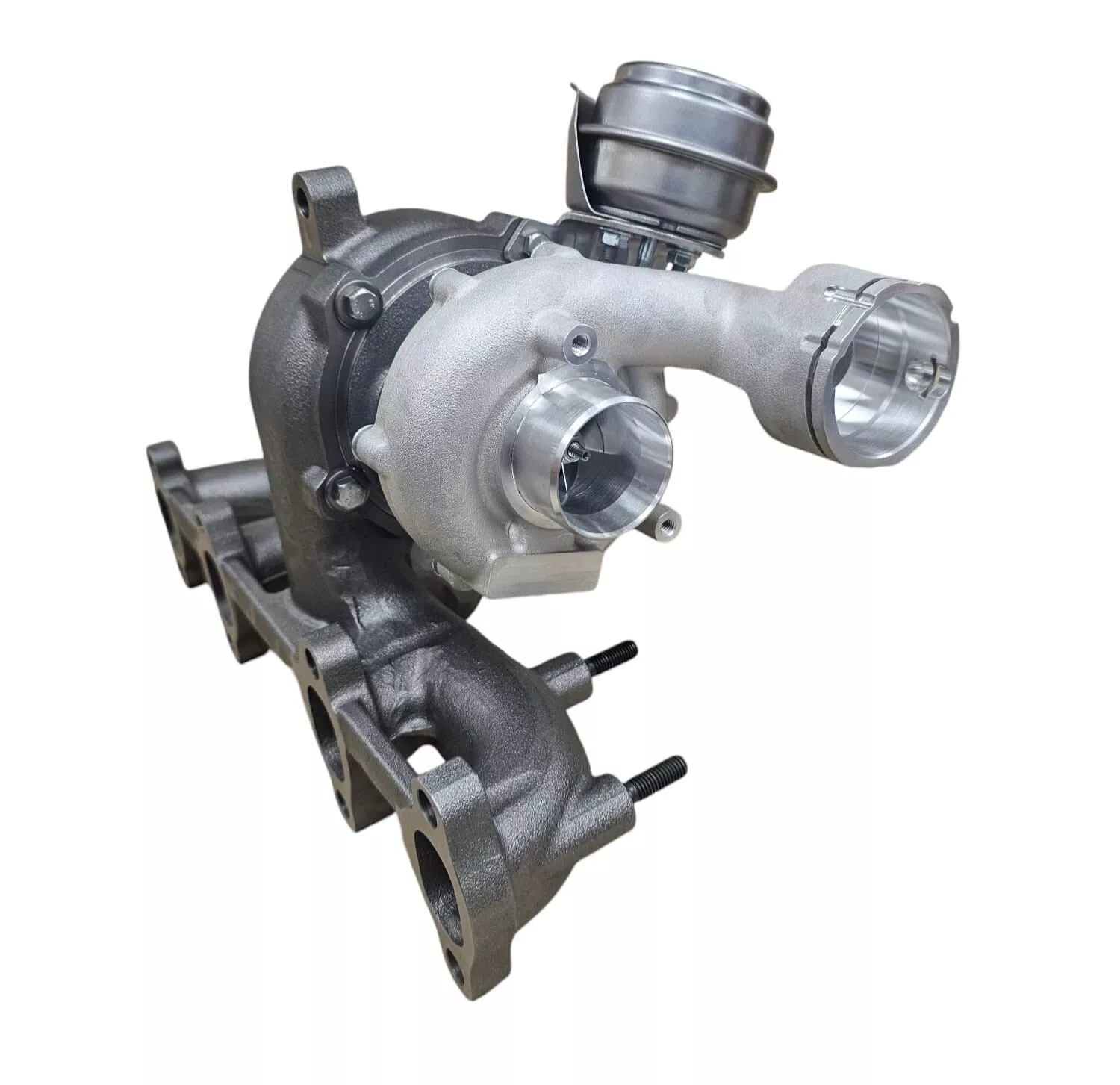

Large frame 1752 turbo

High flow stainless steel downpipe

Oil feed line

Turbo specs

52mm High flow compressor wheel

hi-flow compressor housing

GT17 cutback turbine wheel

Upgraded bearing system to handle more boost than the OEM unit safely

Brand new turbine housing/manifold

Includes new gasket set

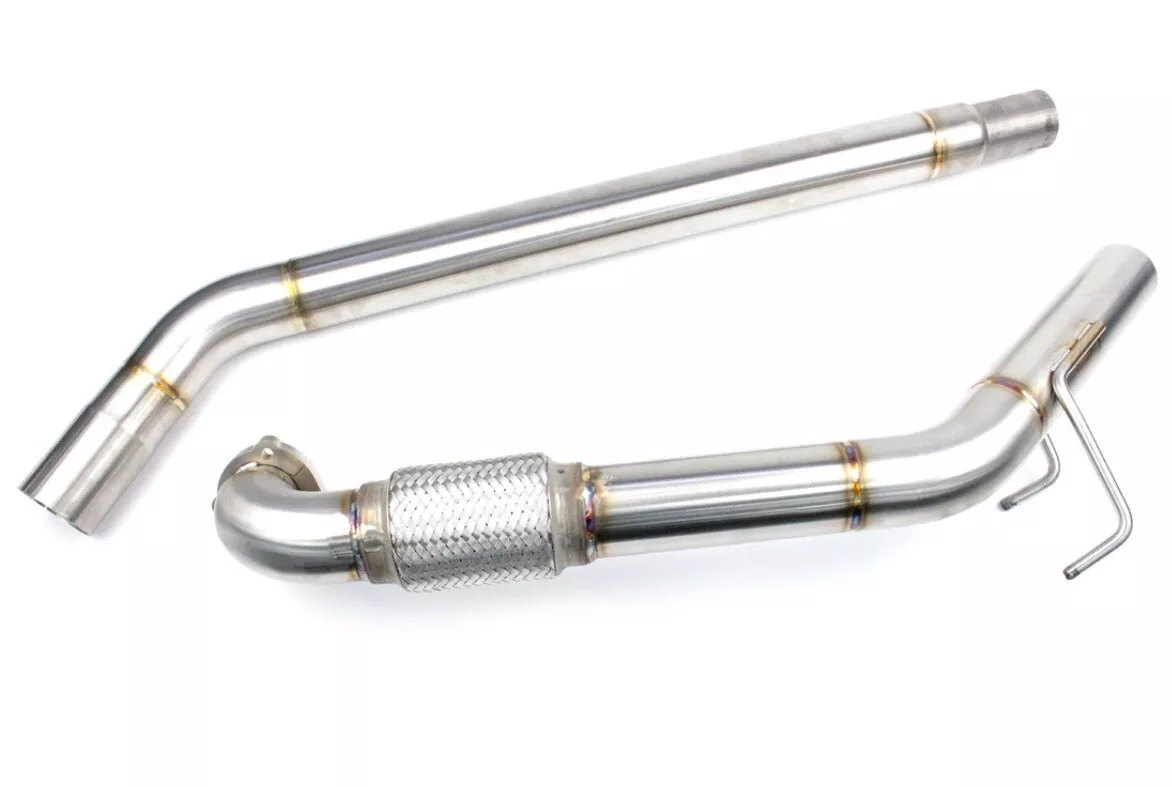

De-Cat Downpipe

2.5″ TIG Welded stainless steel

Pipe reduces down to stock sized exhaust to slot in to the stock system

Kit is to fit the following engine codes BRR 85, BRS 104 & AXB 105

This kit requires injectors from a PD130/150 to be fitted to achieve over 160hp as the stock injectors run out of flow at this point.

Please contact prior to purchase for stock levels and lead times

Warranty is one year against manufacturing and parts defects upon inspection and assessment.

Returns are not accepted on items that are assembled and made to order as these are classed as custom made items. Returns accepted at discretion of the management with a potential restocking fee.

Any return agreed will only be refunded to agreed value if the item is returned in it’s as sent condition, not removed from the sealed packaging. At managers discretion the return may still be accepted but an inspection, testing and repackaging fee will be applied.

Further reading: VAG TDI Hybrid Turbo Upgrade Guide — full fitment, power targets and remap advice

Not sure which spec is right for you? Read our guide to choosing the right replacement or upgraded turbocharger.

Additional information

Weight	20 kg
Dimensions	120 × 50 × 50 cm
Car Make	VW
Turbo Frame	GT17
Power Target	240hp+
Product Type	Turbo Kit

VW Transporter T5 1.9 TDI PD 240hp Hybrid Turbo Kit 1752 BRR BRS AXB | UKTP

£945.00

Complete 240hp turbo kit for the VW T5 Transporter 1.9 TDI PD (BRR 85, BRS 104, AXB 105). Includes a large-frame 1752 hybrid turbo with 52mm high-flow compressor wheel and GT17 cutback turbine, plus a 2.5″ TIG-welded stainless de-cat downpipe and oil feed line. Essex built — requires PD130/150 injectors for full power.
