VW Golf Mk5 Audi A3 8P Seat Leon Skoda Octavia 2.0 TDI BKD PD140 GT1756 56mm 260hp Big Comp Hybrid Turbo | UKTP

£560.00

GT1756 hybrid turbocharger for the 2.0 TDI 16v BKD/AZV PD140 fitted to VW Golf Mk5, Audi A3 8P, Seat Altea/Leon/Toledo, Skoda Octavia/Superb, Passat, Jetta, Touran, Bora and Vento. 56mm high-flow billet compressor wheel in a GT20 hi-flow housing, new VNT and uprated bearings deliver a strong 230-260hp on the right map. Essex built and backed by a one-year warranty – order online now.

Description

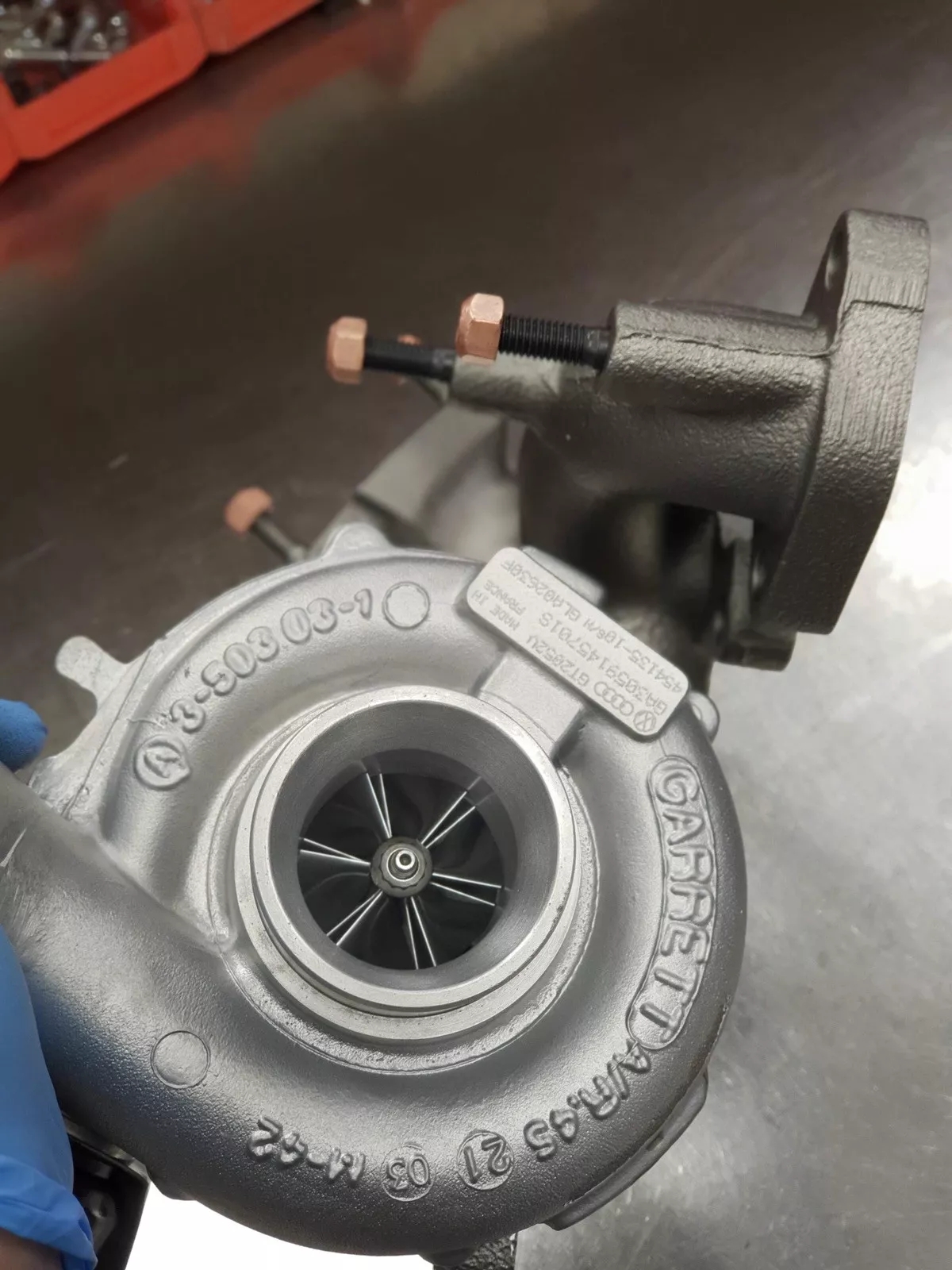

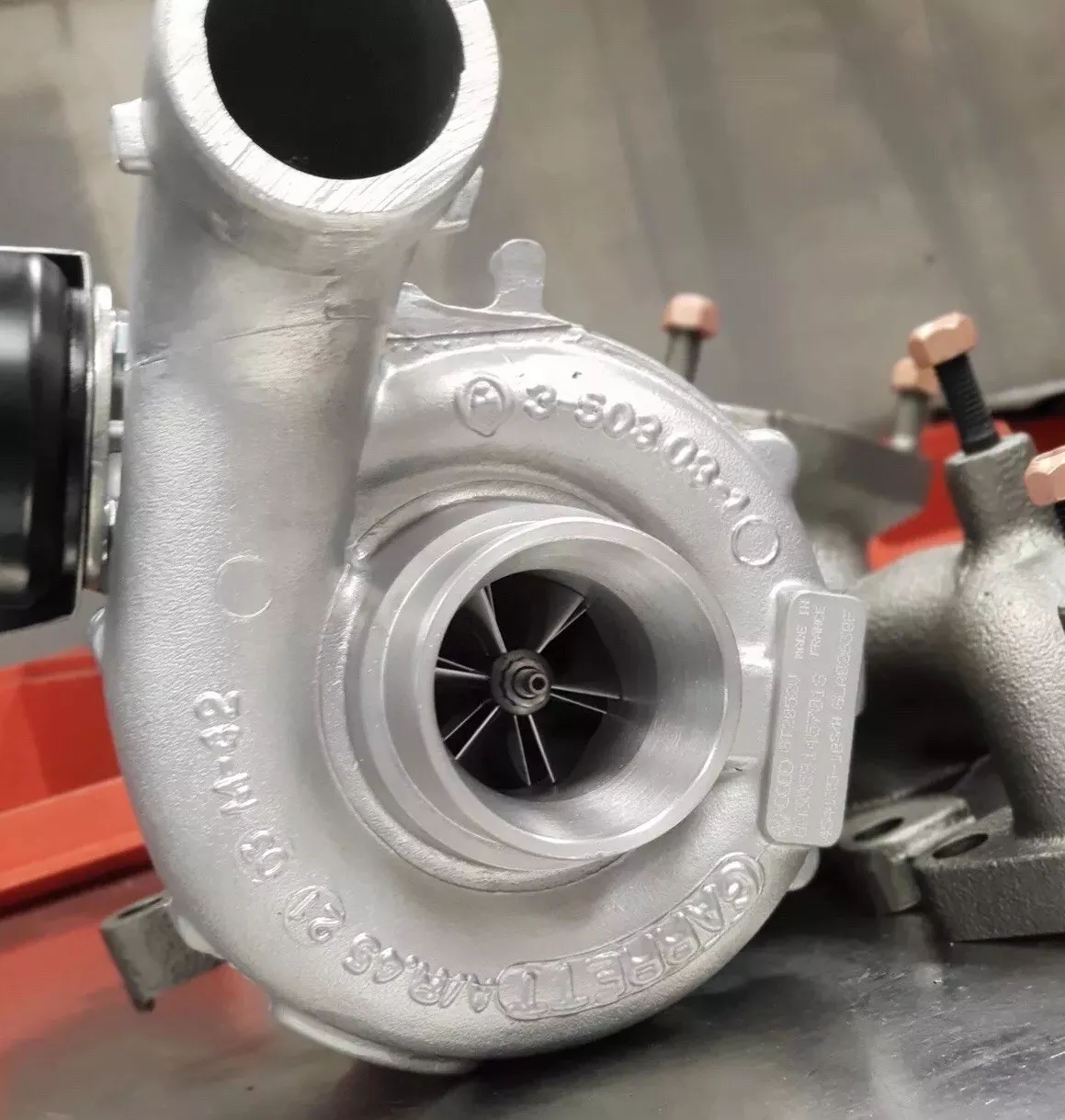

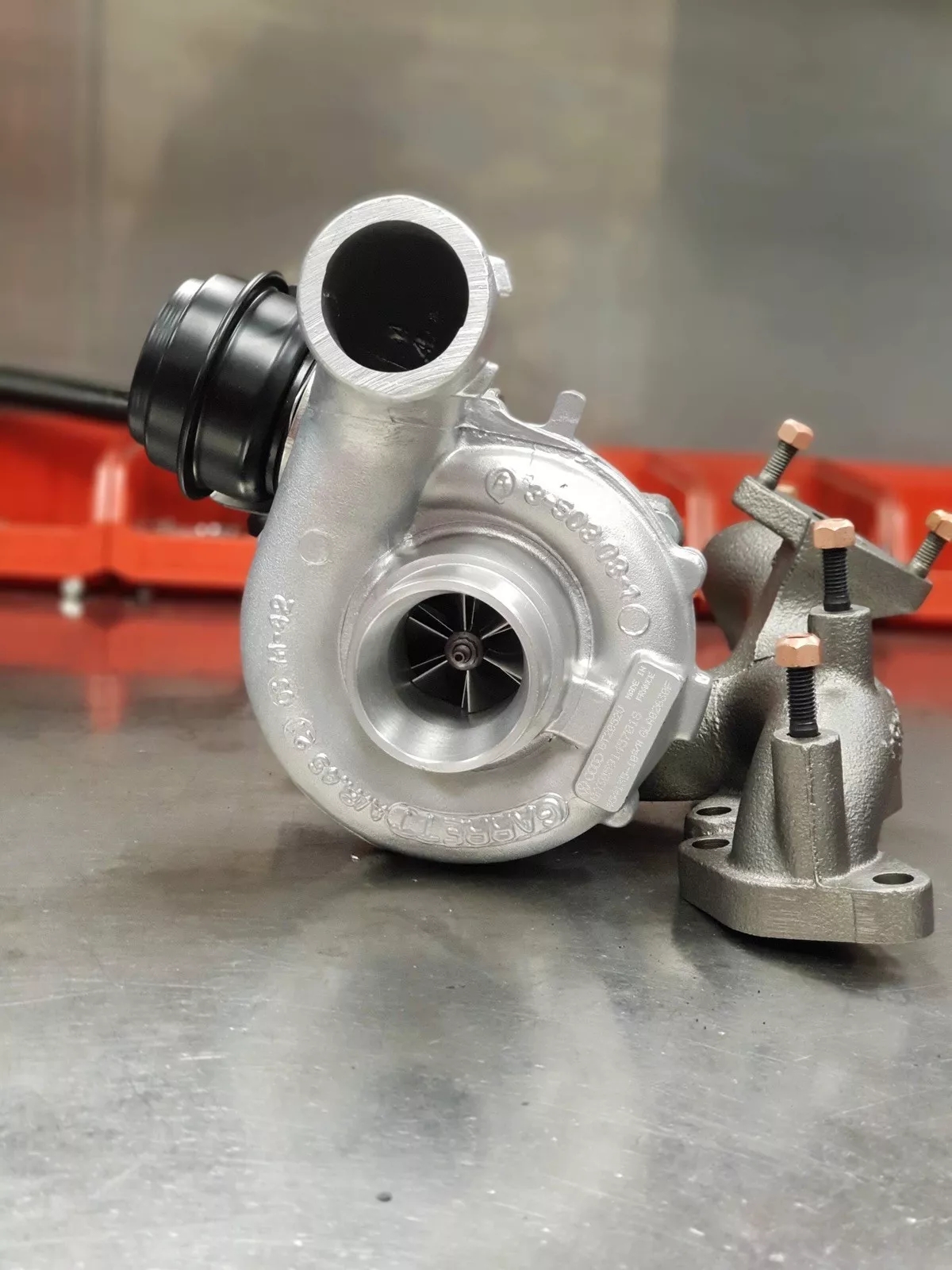

BKD GT1749 260HP Hybrid Turbo 56mm

This is a hybrid turbo, Essex built.



It’s based on the BKD PD140 GT1749 turbo



This Turbocharger Includes:

56mm high flow billet compressor wheel

GT20 High flow compressor housing

GT17 cutback turbine wheel

Upgraded bearing system to handle more boost than OEM safely.

Brand new VNT System

Brand new turbine housing

Includes new gasket set



Please enter your Vehicle Details in the ‘Add note to your order’ at checkout so we can clock the turbos correctly.



Makes & Models this turbocharger will fit :



Audi A3 / S3 – AZV & BKD

Seat Altea – AZV & BKD

Seat Leon – AZV & BKD

Seat Toledo – AZV & BKD

Skoda Octavia – AZV & BKD

Skoda Superb – BKD

VW Bora – BKD

VW Golf – AZV & BKD

VW Golf Plus – AZV & BKD

VW Jetta – AZV & BKD

VW Passat / Variant – BKP & BKD

VW Touran – AZV & BKD

VW Vento – BKD

Expected power range 230 – 260 bhp with the correct supporting modifications and the correct remapping

Due to the compressor housing change, a silicon reducer is required for the turbo inlet and the turbo outlet you can cut the metal part off and slide it over the output.

Any questions or queries just ask. These are also listed online alongside other items and offers.

Warranty is one year against manufacturing and parts defects upon inspection and assessment.





Further reading: VAG TDI Hybrid Turbo Upgrade Guide — full fitment, power targets and remap advice

Not sure which spec is right for you? Read our guide to choosing the right replacement or upgraded turbocharger.

Additional information

Weight 10 kg
Dimensions 50 × 35 × 35 cm
Car Make

Audi, Seat, Skoda, VW

Turbo Frame

GT17

Power Target

260hp+

Product Type

Hybrid Turbo
